Wonderland RV
$154,889$144,889 drive away
Reduced by $10,000
Payload is what you can actually load: water, gear, food, recovery kit and anything you add. It is the number most people find out about too late, so we publish it.
At our Campbelltown showroom. 23 Badgally Road, Campbelltown NSW 2560.
Every van we list shows the same fields in the same order. Where something says "ask us", we have not confirmed that figure for this particular unit and would rather tell you the real number than publish a guess.
Weights
| Tare | 2940 kg |
|---|---|
| GTM | 3295 kg |
| ATM | 3500 kg |
| Payload | 560 kg |
| Ball weight at tare | 200 kg |
| Maximum ball weight | 350 kg |
Dimensions and capacity
| Body length | 6.4m |
|---|---|
| Overall length | 9.0m |
| Sleeps | 2 |
| Seats | 3 |
Chassis and running gear
| Axle configuration | Tandem |
|---|---|
| Suspension | Cruisemaster XT air bag and independent |
| Brakes | 12 inch Electric Drum |
| Tyre size | 265/75R16 |
| Stud pattern | 6 stud, 6x139.7 |
Fitout
| Fridge | 224L Compressor |
|---|---|
| Toilet | Thetford cassette |
| Shower | Internal and external hot/cold |
| Air conditioning | Yes |
This unit
| Stock number | WL1180 |
|---|---|
| Condition | New |
| Availability | In stock |
| Registration | 12 Months NSW |
Weights are as supplied by the manufacturer for this build and are confirmed against the compliance plate before handover. If a number here matters to your decision, ask us to check it rather than relying on the listing.

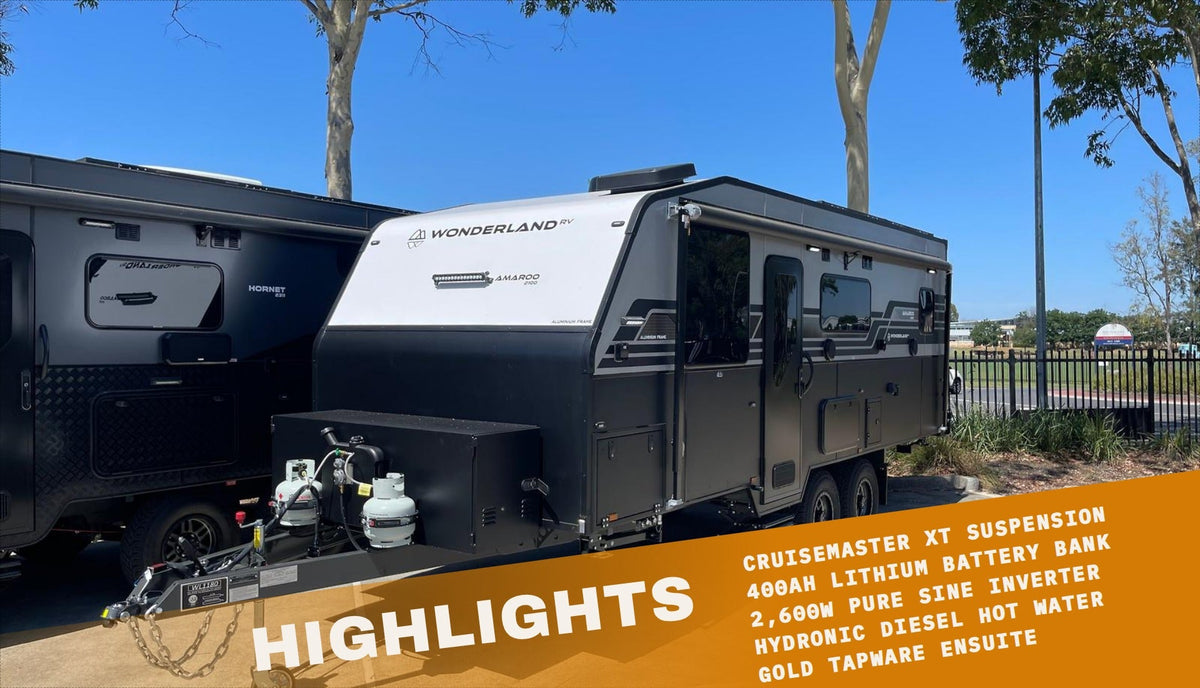

WONDERLAND RV 21FT COUPLES LAYOUT WITH LARGE ENSUITE
LOCATED IN CAMPBELLTOWN, NSW 2560
2025 PLATE CLEARANCE - SAVE OVER $10,000
Brand new layout with a North South Queen Bed and massive ensuite!
Upgrades added to this unit: SPR aluminium frame · 4.5T Cruisemaster XT Level 3 manual suspension · single spare wheel wood box · Redarc under lounge electrical system (2600W inverter, 800W solar, 400A/h lithium battery) · 2 x Sirocco fan · 1 x grey Anderson plug, 1 x yellow portable solar input · soft close cupboard drawers · tunnel boot 1200mm slide out tray · external hatch for entertainment pack · hydronic diesel heat hot water system & heater "gasless" · grey water bypass · separate filler & cap per tank · black aluminium high access tunnel boot doors · 850mm flat plate black · dual pull out kitchen bin · portable induction cooker with 2 drawers · CS Pressure 12v powered dust reduction · kitchen white granite sink bowl · brass gold tapware
Chassis, frame & suspension: 6" A-frame, 4" chassis & wheel box riser (flat floor) · Cruisemaster DO35 hitch · 12" electric drum brakes · painted chassis with drop down stabilisers · 16" all terrain tyres (265/75R16) on 6x139 ET0 rims
Electrical: Redarc under lounge electrical system — Redarc Alpha 50 management system, 50A maximum via solar/DC/AC, 2000W inverter, 600W-12V solar, 300ah lithium batteries, LCD gauges · Dometic air conditioner · roof LED downlights · USB, USB-C, 12V & 240V outlets · grey Anderson plug · 12-pin trailer plug
Internal: Fusion audio & speakers · portable induction cooktop with 2 extra drawers, microwave & rangehood
Exterior: Dometic 8300 awning · external shower · 1 x picnic table · external hatch for entertainment pack · 6 external lights including 3 insect-repellent LEDs · 35mm one-piece composite roof · front & rear (white or grey) · aluminium cladded sides · 850mm black checker plate · structural jigsaw Wonderwall frame with XPS · 2 x rear jerry can/water holders
12 Months NSW personal registration included
