Rhinomax
$194,175$188,000 drive away
Reduced by $6,175
Payload is what you can actually load: water, gear, food, recovery kit and anything you add. It is the number most people find out about too late, so we publish it.
At our Campbelltown showroom. 23 Badgally Road, Campbelltown NSW 2560.
Every van we list shows the same fields in the same order. Where something says "ask us", we have not confirmed that figure for this particular unit and would rather tell you the real number than publish a guess.
Weights
| Tare | 2550 kg |
|---|---|
| GTM | 3150 kg |
| ATM | 3500 kg |
| Payload | 950 kg |
| Ball weight at tare | 240 kg |
| Maximum ball weight | Ask us |
Dimensions and capacity
| Body length | 5.66m |
|---|---|
| Overall length | 7.8m |
| Sleeps | 2 |
| Seats | 2 |
Chassis and running gear
| Axle configuration | Tandem |
|---|---|
| Suspension | Cruisemaster XT Freestyle air bag and independent |
| Brakes | 12 inch Electric |
| Tyre size | 265/70R17 |
| Stud pattern | 6 stud, 6x139.7 |
Fitout
| Fridge | 80L internal + 85L external |
|---|---|
| Toilet | Natures Head composting |
| Shower | Internal and external hot/cold |
| Air conditioning | Yes |
This unit
| Stock number | RM077 |
|---|---|
| Condition | New |
| Availability | In stock |
| Registration | 12 Months NSW |
Weights are as supplied by the manufacturer for this build and are confirmed against the compliance plate before handover. If a number here matters to your decision, ask us to check it rather than relying on the listing.

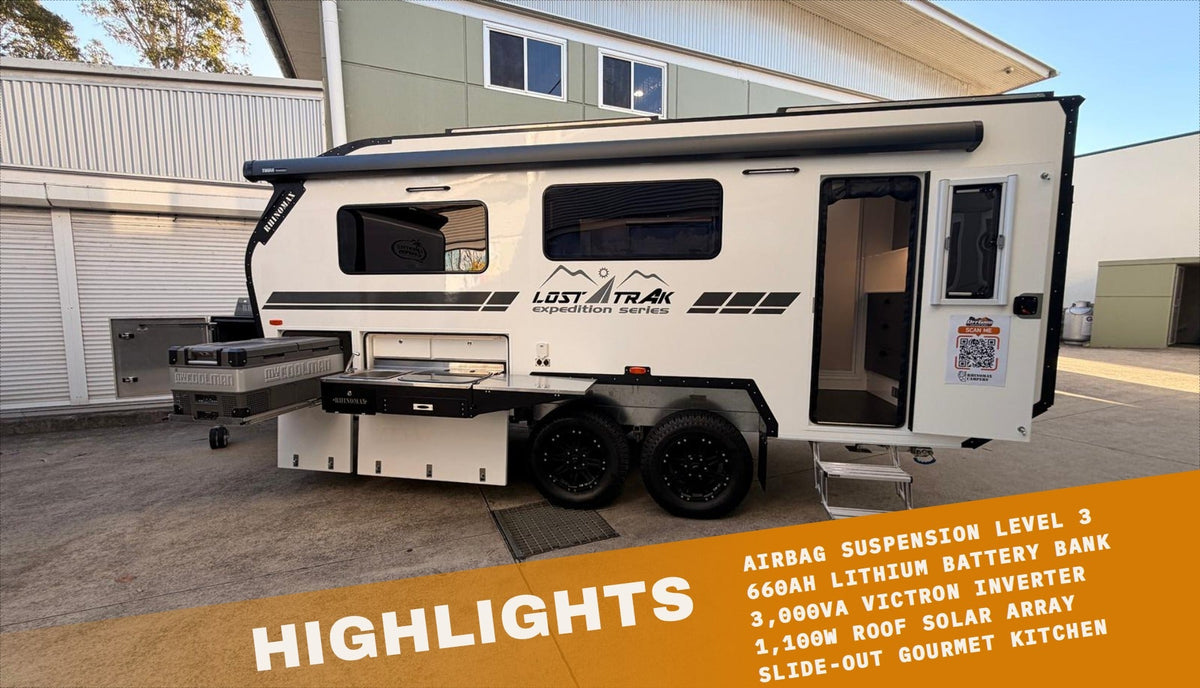

Rhinomax Campers Lost Trak 18.5 Hybrid Tourer. Replacement Cost Brand New $194,175
Overall length 7300mm excluding spare wheel · Body length 5660mm (18.5ft) · Body width 2100mm · Height 2820mm (excluding air con) · Tare 2550kg · ATM 3500kg · Ball weight 240kg · Year 01/2026
LOCATED IN CAMPBELLTOWN
Body & chassis: Rhinomax hot dipped galvanised performance chassis · Cruisemaster XT 3500kg airbag suspension (level 3), 12-inch electric brakes with 5 x 17" alloy wheels & all terrain 265/70 R17 tyres · Cruisemaster DO35 3500kg off road coupling · spare wheel holder · heavy duty ARK XO 750 jockey wheel · insulated fibreglass composite body panel construction, full length reinforced insulated fibreglass floor, exo-skeleton body reinforcing · 4 x drop down stabiliser legs
Electrics: 240V and 12V power systems with multiple outlets · 50A Anderson plug · energy efficient LED internal & external lighting · 660A lithium battery power with Victron MultiPlus II combined 3000VA inverter/120A AC charger, Victron 50A DC-DC charger and 1100W roof mounted solar with twin Victron smart solar controllers 150/70A & 100/50A · auxiliary solar connection point · electronic break-away safety system · RM Digital command centre intelligent power management
Water: 210L freshwater (extra 170L available) · 85L grey water connected to shower & sink · water filtration · external creek draw · 12 volt pump · pressure reducer for town water · Webasto diesel hydronic hot water service · hot/cold power shower
Internal: Queen bed with inner spring mattress · deluxe bedhead with storage pods, 2 x reading lights with USB-C, bedside compartments · LED lighting · café-lounge with high back full grain leather seating & dining table · 1 x Sirocco 3 speed fan with timer · overhead lockers · twin under-bed drawers · large kitchen with twin benchtops & cabinets, induction cooktop · ensuite with power shower, waterless composting toilet, extractor fan · electric opening roof skylight with blind & flyscreen · HD digital smart TV · Fusion Bluetooth stereo with twin speakers · roof mounted air conditioning · entrance door fly screen
Internal kitchen: Twin base units with overhead cabinets · Rhino-Stone solid surface acrylic benchtops with built-in sink, cover and mixer tap · twin induction cooktop · microwave oven · 80L fridge/freezer · pull-out waste bin
External: Rhinomax triple lock dustproof door · 4 x double glazed windows with blinds & fly screens · large underbed storage · 5m x 2.5m awning · awning anti-flap kit wind bars · large front storage box with pole storage · lockable gas box & twin jerry can holders · twin external under awning 2 way lights · cargo (wood) basket on front box · rear view camera · washing machine in front external under-bed compartment · Maxtrax holders fitted to rear (boards not included)
External kitchen: Slide out gourmet kitchen with expandable stainless bench, large utensil drawer, under sink storage · stainless sink with hot/cold mixer · 3 burner gas stove with electronic ignition · 2 x large insulated pantry drawers · 85L dual zone fridge/freezer on slide
Upgrades fitted: Solar upgrade (1000W to 1100W) · washing machine · pull-out waste bin · entrance door fly screen · Maxtrax holders
