Wonderland RV
$149,033 drive away
Payload is what you can actually load: water, gear, food, recovery kit and anything you add. It is the number most people find out about too late, so we publish it.
At our Campbelltown showroom. 23 Badgally Road, Campbelltown NSW 2560.
Every van we list shows the same fields in the same order. Where something says "ask us", we have not confirmed that figure for this particular unit and would rather tell you the real number than publish a guess.
Weights
| Tare | 2670 kg |
|---|---|
| GTM | 3303 kg |
| ATM | 3495 kg |
| Payload | 825 kg |
| Ball weight at tare | 192 kg |
| Maximum ball weight | 350 kg |
Dimensions and capacity
| Body length | 5.81m |
|---|---|
| Overall length | 8.6m |
| Sleeps | 2 |
| Seats | 2 |
Chassis and running gear
| Axle configuration | Tandem |
|---|---|
| Suspension | Cruisemaster XT Level 3 manual air bag and independent |
| Brakes | 12 inch Electric Drum |
| Tyre size | 265/75R16 |
| Stud pattern | 6 stud, 6x139.7 |
Fitout
| Fridge | 216L Compressor 12V |
|---|---|
| Toilet | Thetford separation dual cassette |
| Shower | Internal and external hot/cold |
| Air conditioning | Yes |
This unit
| Stock number | WL1261 |
|---|---|
| Condition | New |
| Availability | In stock |
| Registration | 12 Months NSW |
Weights are as supplied by the manufacturer for this build and are confirmed against the compliance plate before handover. If a number here matters to your decision, ask us to check it rather than relying on the listing.

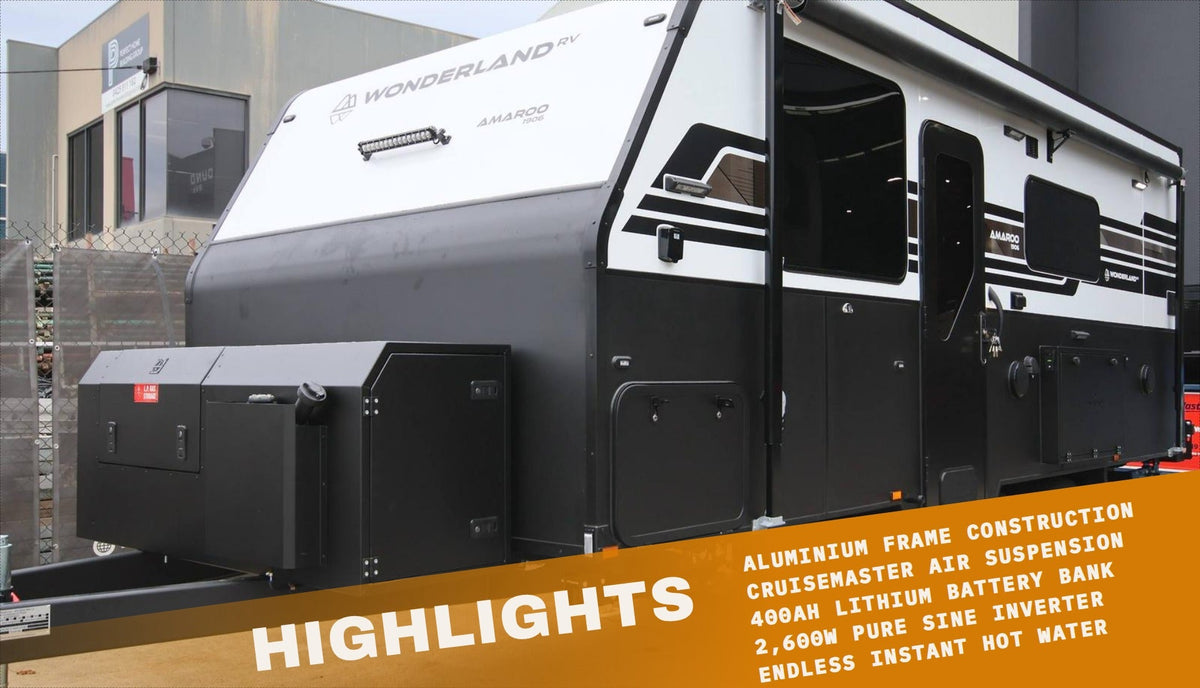

2026 Wonderland RV Amaroo Classic Off-Road Caravan – Tandem Axle
LOCATED IN CAMPBELLTOWN
Layout Code AM1906Q-M-L · Queen 6'3" bed with dual bedside tables · mid door entry · L-shape lounge · rear ensuite
Upgrades fitted: Aluminium frame · 4.5T Cruisemaster XT Level 3 manual air suspension · 12inch drums with Dexter sway control · CS dust suppression 12V · Redarc Under Lounge electric system (Alpha 50, 50A max via solar/DC/AC, 2600W inverter, 800W solar, 400Ah lithium) · soft close drawers · removable wardrobe shelves · hot/cold tap under tunnel boot · Aufocus diesel heater · Endless instant HWS · white granite sink
Standard features: Double 4" chassis with 6" A-frame · 12" drum brakes · recessed Cruisemaster DO35 hitch · Alko jockey wheel · drop down corner stabiliser legs · Grid 16" 265/75R16 all terrain tyres · double aluminium entry step · 2 x 90–100L fresh water tanks · 1 x 100L grey water tank · Dometic Freshjet Z 7 Series 3kW air conditioner · 2 x Sirocco fans · 24" Smart TV with DVD · Fusion audio & speakers · LED downlights, 6 external lights, amber interior step & mood lighting · dual 240V GPOs and USB/USB-C outlets throughout · 12-pin tow plug, reverse camera, breakaway system · smoke/CO/LPG detectors, fire blanket & extinguisher · induction cooktop with multi-function cooker/fryer/microwave · 216L 12V compressor fridge · 3kg wall-mounted washing machine · 3-way filtered gooseneck tap · outdoor pantry/picnic table with light, GPO & USB · 2 x 9kg gas bottles · Thetford separation dual cassette toilet · external hot/cold shower · LED ensuite hatches · microfibre leather pillow-back upholstery · perspex splash back · pleated entry door blind · large Dometic 8700 manual awning · 1 x 700x500 skylight/roof hatch · black tri-lock with security & midge screens
