Wonderland RV
$154,000$147,000 drive away
Reduced by $7,000
Payload is what you can actually load: water, gear, food, recovery kit and anything you add. It is the number most people find out about too late, so we publish it.
At our Campbelltown showroom. 23 Badgally Road, Campbelltown NSW 2560.
Every van we list shows the same fields in the same order. Where something says "ask us", we have not confirmed that figure for this particular unit and would rather tell you the real number than publish a guess.
Weights
| Tare | 2849 kg |
|---|---|
| GTM | 3378 kg |
| ATM | 3500 kg |
| Payload | 651 kg |
| Ball weight at tare | 227 kg |
| Maximum ball weight | Ask us |
Dimensions and capacity
| Body length | 5.81m |
|---|---|
| Overall length | 8.5m |
| Sleeps | 2 |
| Seats | 2 |
Chassis and running gear
| Axle configuration | Tandem |
|---|---|
| Suspension | TEKO Tuff Ride independent spring |
| Brakes | 12 inch Electric Drum |
| Tyre size | 16 inch |
| Stud pattern | 6 stud, 6x139.7 |
Fitout
| Fridge | 216L Compressor 12V |
|---|---|
| Toilet | Thetford cassette |
| Shower | Internal and external hot/cold |
| Air conditioning | Yes |
This unit
| Stock number | WL1228 |
|---|---|
| Condition | New |
| Availability | In stock |
| Registration | 12 Months NSW |
Weights are as supplied by the manufacturer for this build and are confirmed against the compliance plate before handover. If a number here matters to your decision, ask us to check it rather than relying on the listing.

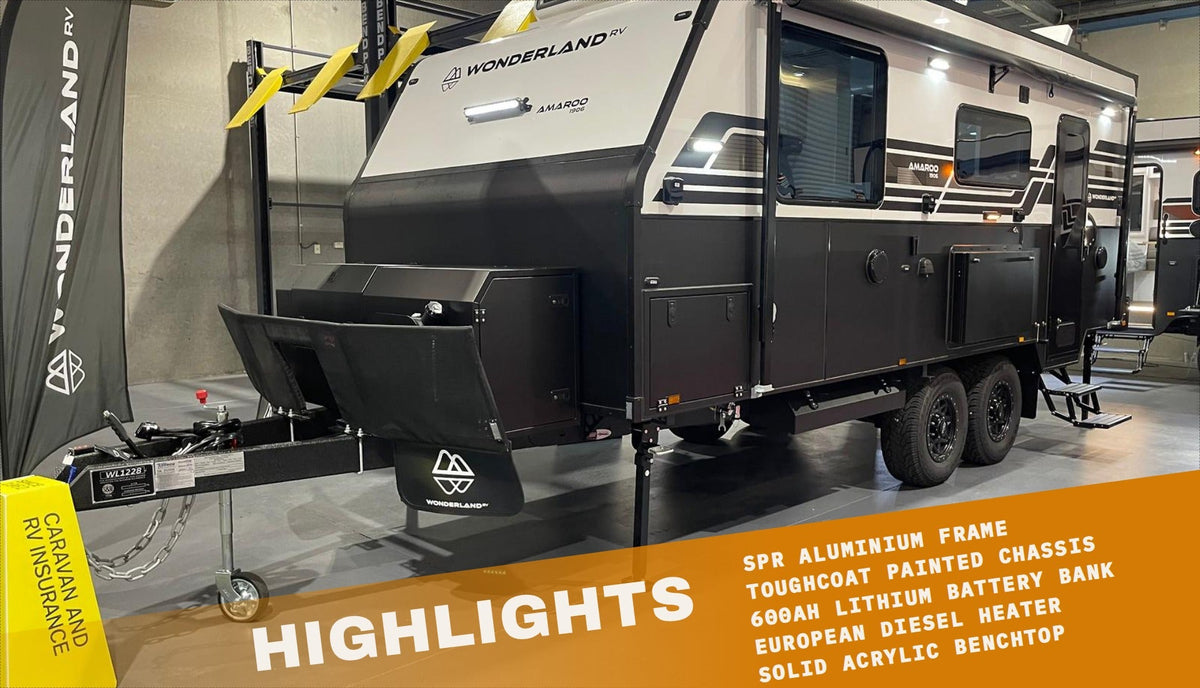

2026 Wonderland RV Amaroo Classic Off-Road Caravan – Tandem Axle
LOCATED IN CAMPBELLTOWN
Layout Code AM1906Q-R-L · Queen 6'3" bed with dual bedside tables, rear door entry, pull-out half pantry, L-shape lounge, rear ensuite
Upgrades fitted: Toughcoat MIPA black painted chassis · Dexter sway control · SPR aluminium frame · aluminium stone guard · CS pressure 12V powered dust reduction · electrical upgrade (800W solar, 2600W inverter) · additional 300Ah lithium battery (600Ah total) · diesel heater (European) · Fogatti instant hot water · solid acrylic benchtop with under-mounted sink · soft close cupboard drawers · ceramic grey round ensuite bowl · tapware & bathroom accessories upgrade · stainless PVD kitchen sink · 2 x removable shelves in bedroom robe · 2 x 700x500 roof hatches/skylights · chassis mounted storage box 900mm
Chassis & suspension: Double 4" chassis with 6" A-frame, 3.7T Tuff-Ride coil suspension (airbag ready), 12" drum brakes · recessed Cruisemaster DO35 hitch, Alko jockey wheel, drop down corner stabiliser legs · Grid 16" 265/75R16 all terrain tyres, double aluminium entry step · 2 x 90–100L fresh water tanks, 1 x 100L grey water tank
Electrical: Redarc Alpha 50 management system — 600W solar, 300Ah lithium, 2000W inverter, LCD gauges · Dometic Freshjet Z 7 Series 3kW air conditioner · 2 x Sirocco fans, 24" Smart TV with DVD, Fusion audio & speakers · LED downlights, 6 external lights, amber interior step & mood lighting · dual 240V GPOs, USB/USB-C throughout, 12-pin tow plug · reverse camera, breakaway, smoke/CO/LPG detectors, fire blanket & extinguisher
Kitchen & appliances: Induction cooktop, multi-function cooker/fryer/microwave · 224L 12V compressor fridge, 3kg wall-mounted washing machine · stainless steel sink, 3-way filtered gooseneck tap, outdoor pantry · Swift gas & electric hot water service, 2 x 9kg gas bottles
Bathroom: Thetford dual cassette ceramic toilet, external shower, LED ensuite hatches
Interior: Premium laminate benchtop, microfibre leather pillow-back upholstery, metal-sided cupboard drawers, perspex splashback, pleated entry door blind
Exterior: Large Dometic 8700 manual awning · picnic table with light, GPO & USB · 1 x 700x500 skylight/roof hatch · black tri-lock with security & midge screens · J-mould/Truline rubber insert
Tell us what you tow with and roughly when you are looking. It means the person who calls you back can actually answer your questions instead of starting from scratch.
Would rather talk? Call (02) 4648 4181 or email sales@offgridoutfitters.com.au
