Wonderland RV
$179,039$169,000 drive away
Reduced by $10,039
Payload is what you can actually load: water, gear, food, recovery kit and anything you add. It is the number most people find out about too late, so we publish it.
At our Campbelltown showroom. 23 Badgally Road, Campbelltown NSW 2560.
Every van we list shows the same fields in the same order. Where something says "ask us", we have not confirmed that figure for this particular unit and would rather tell you the real number than publish a guess.
Weights
| Tare | 2820 kg |
|---|---|
| GTM | 3295 kg |
| ATM | 3500 kg |
| Payload | 680 kg |
| Ball weight at tare | 200 kg |
| Maximum ball weight | 350 kg |
Dimensions and capacity
| Body length | 6.4m |
|---|---|
| Overall length | 9.05m |
| Sleeps | 4 |
| Seats | 4 |
Chassis and running gear
| Axle configuration | Tandem |
|---|---|
| Suspension | Cruisemaster XT Level 5 BCS air bag and independent |
| Brakes | 12 inch Electric Drum |
| Tyre size | 285/75R16 |
| Stud pattern | 6 stud, 6x139.7 |
Fitout
| Fridge | 224L Compressor |
|---|---|
| Toilet | Separation toilet |
| Shower | Internal and external hot/cold |
| Air conditioning | Yes |
This unit
| Stock number | WL1173 |
|---|---|
| Condition | New |
| Availability | In stock |
| Registration | 12 Months NSW |
Weights are as supplied by the manufacturer for this build and are confirmed against the compliance plate before handover. If a number here matters to your decision, ask us to check it rather than relying on the listing.

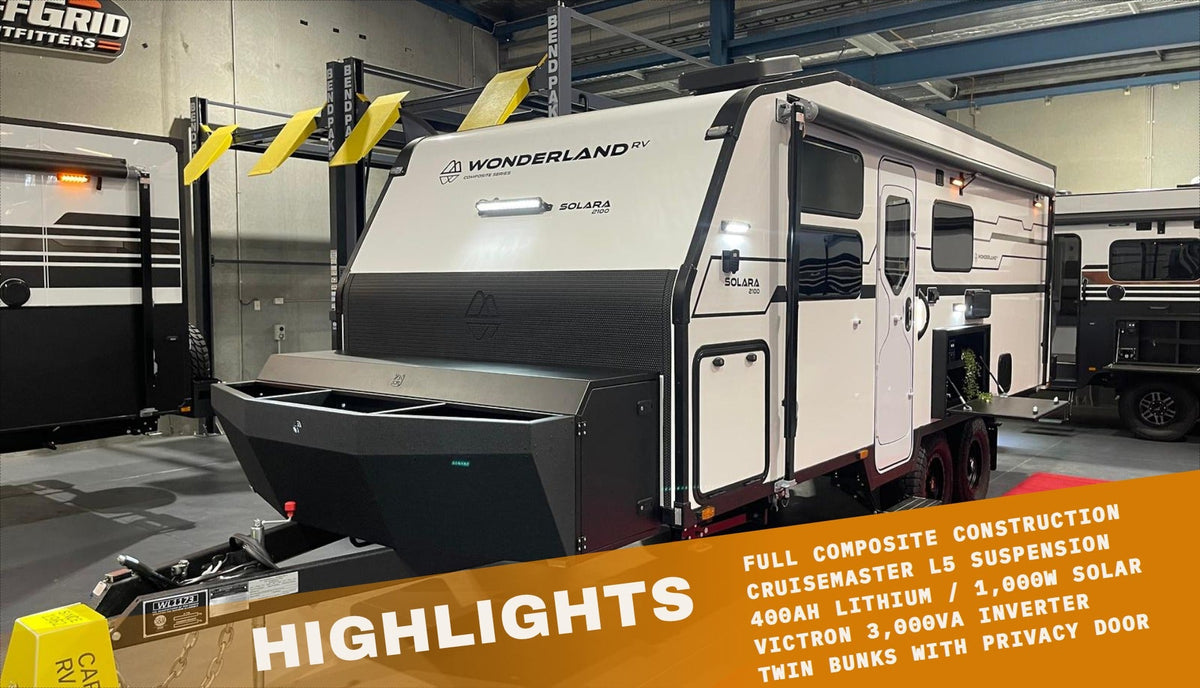

Upgrades fitted: Cruisemaster XT Level 5 BCS Suspension · Aluminium Corner Capping · 2 x Sirocco Fans (for bunks)
LOCATED IN CAMPBELLTOWN
Chassis & construction: 6" A-Frame with double 4"+4" chassis & wheel box riser (flat floor) · hot-dip galvanised or Toughcoat-MP black chassis finish · full composite sandwich panel construction with XPS insulation · PP honeycomb composite floor · recessed Cruisemaster DO35 hitch · 4-arm rear bumper with spare wheel & holder · drop-down corner stabiliser legs · double aluminium entry step · TB38 front toolbox (bevel top, dual long slides, visor, suits 2 × 4kg gas bottles) · CS Pressure 12V dust reduction
Suspension, wheels & water: Cruisemaster XT 4.5T Level 3 air suspension · Dirty Life Theory 16" wheels with 285/75R16 Cooper AT3 tyres · 2 × 90–100L fresh water tanks · 1 × 90L drinking water tank · 1 × 100L grey water tank
Electrical & technology: Victron off-grid system with Touch 70 display · 3000VA inverter / 120A charger · dual 50A MPPT solar chargers · 1000W roof-mounted solar · 400Ah lithium · Nexus electrical management · 24" Smart TV with DVD · Omni Winegard / Cowfish TV antenna · Fusion premium audio · multiple USB & USB-C outlets · dual Sirocco fans · Dometic FreshJet 7 Series Lite 3kW air conditioner
Internal layout & comfort: Queen bed (6'6") with storage chest & bedside cabinetry · twin bunks with privacy concertina door · full ensuite with separation toilet & shower · microfibre leather upholstery · premium Urban Republic laminate benchtops · soft-close cupboards & drawers · pull-out kitchen dual bin · perspex splashback · brushed stainless 3-way filtered kitchen tap · diesel hot water system & diesel heater (gasless) · 3kg wall-mounted washing machine
Kitchen & appliances: Induction cooktop · multi-function cooker / air fryer / microwave · 224L dual-hinge 2-way compressor fridge · outdoor pantry picnic table with light, GPO & USB · external shower · 2 × 4kg gas bottles · water tank gauges (one per tank)
External: Full white composite roof front to back · black aluminium access & service doors · large LED ensuite hatches · 700 × 500 roof hatch/skylight · large Dometic 8700 manual awning · multiple external LED lights including front & rear light bars · reverse camera · full safety pack
Tell us what you tow with and roughly when you are looking. It means the person who calls you back can actually answer your questions instead of starting from scratch.
Would rather talk? Call (02) 4648 4181 or email sales@offgridoutfitters.com.au
