Zone RV
$227,588$222,588 drive away
Reduced by $5,000
Payload is what you can actually load: water, gear, food, recovery kit and anything you add. It is the number most people find out about too late, so we publish it.
At our Campbelltown showroom. 23 Badgally Road, Campbelltown NSW 2560.
Every van we list shows the same fields in the same order. Where something says "ask us", we have not confirmed that figure for this particular unit and would rather tell you the real number than publish a guess.
Weights
| Tare | 3063 kg |
|---|---|
| GTM | 3778 kg |
| ATM | 4000 kg |
| Payload | 937 kg |
| Ball weight at tare | 222 kg |
| Maximum ball weight | 400 kg |
Dimensions and capacity
| Body length | 6.4m |
|---|---|
| Overall length | 8.8m |
| Sleeps | 4 |
| Seats | 4 |
Chassis and running gear
| Axle configuration | Tandem |
|---|---|
| Suspension | Cruisemaster ATX Unleashed air bag and independent |
| Brakes | Hydraulic disc |
| Tyre size | 285/65R18 |
| Stud pattern | 6 stud, 6x139.7 |
Fitout
| Fridge | 274L Fridge Freezer |
|---|---|
| Toilet | OGO composting |
| Shower | Internal and external hot/cold |
| Air conditioning | Yes |
This unit
| Stock number | ZSPF336 |
|---|---|
| Condition | New |
| Availability | In stock |
| Registration | 12 Months NSW |
Weights are as supplied by the manufacturer for this build and are confirmed against the compliance plate before handover. If a number here matters to your decision, ask us to check it rather than relying on the listing.

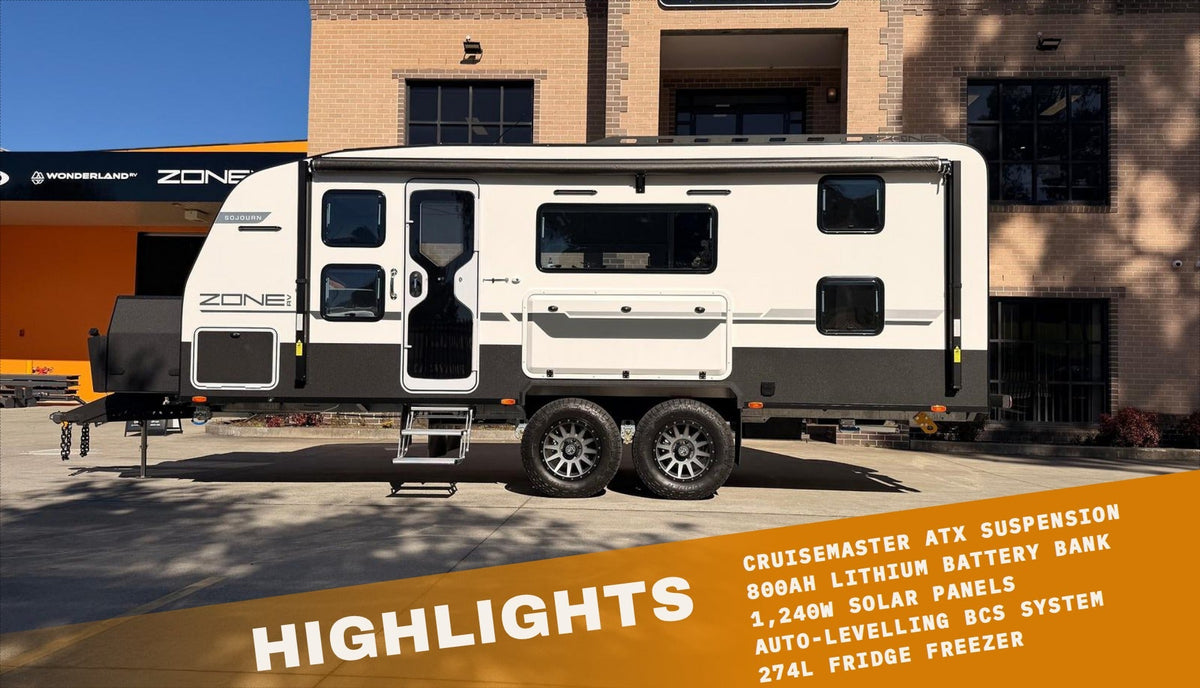

BRAND NEW 2026 ZONE SOJOURN PIONEER FAMILY 2 BUNK
LOCATED IN CAMPBELLTOWN, NSW
Upgrades fitted: Cruisemaster Body Control System (BCS) Auto Levelling · Cruisemaster ATX Unleashed Air Suspension with 12" Disc Brakes (M14 6x139.7) · Protection Pack, Toughcoat to Drawbar, Wheel Arches, Bumper and Sides · 18" Icon Titanium Wheels & 265/65/R18 Tyres (6 stud) · 800Ah Lithium Batteries · 1240W Solar Panels · Queen Pillow Top Mattress · Diesel Air Heater · One Tank Isolated for Drinking Water (240L Water Total) · Washing Machine · BBQ Slide with Sizzler Max BBQ Fitted · Electric Awning · 1 pair Maxtrax MK11 & Mounts
Body & chassis: Hot dip galvanised chassis with underslung mud flaps, Cruisemaster DO45 Hitch (4000kg ATM), power jack, composite toolbox, front & rear stabiliser legs, recovery points, 1 x spare wheel, bike carrier mount (max load 37kg)
Electrical: Redarc Battery Management System with Redvision Display Unit, Alpha 100 (100a max solar, AC or DC), 3000W inverter, mobile internet, GPS odometer, Witi anti-theft with GPS, 2 x wall mounted 12V fans, 12V USB and 240V outlets throughout, internal LED strip lighting, dimmable touch lights, outdoor LED lights
Interior & appliances: Gas strut assisted lift-up bed storage, twin bedside robes with hanging rail and removable shelves, overhead storage lockers, padded upholstered bed head, foot lockers, queen bed & mattress, 32" TV with antenna, synthetic stone benchtop, awning side serving window, large under-mounted sink, soft close drawers with locking latches, dual slide out bin under sink, chrome kitchen & bathroom fittings, dual induction cooktop, 274L fridge & freezer, Fusion sound system, chaise lounge
Plumbing & exterior: OGO composting toilet, vanity basin with mixer tap, internal shower cubicle, diesel hot water heater with 12L diesel tank, 240L water with 12V pump and in-line filter, 100L grey water tank, greywater bypass, outdoor lockable tap, hot & cold outdoor shower, Maxtrax recovery boards, Flat-Out multi-reel pack, mobile internet socket for Starlink, reverse camera, manual awning, manual double entry step, premium entry door with security mesh, double glazed tinted windows with block out blinds and insect screens, marine style external hatches, outdoor kitchen with portable induction stove, collapsible sink, outdoor TV bracket, 240V/12V/USB outlets
