Wonderland RV
$200,038$155,000 drive away
Reduced by $45,038
Payload is what you can actually load: water, gear, food, recovery kit and anything you add. It is the number most people find out about too late, so we publish it.
At our Campbelltown showroom. 23 Badgally Road, Campbelltown NSW 2560.
Every van we list shows the same fields in the same order. Where something says "ask us", we have not confirmed that figure for this particular unit and would rather tell you the real number than publish a guess.
Weights
| Tare | 3020 kg |
|---|---|
| GTM | 3780 kg |
| ATM | 4000 kg |
| Payload | 980 kg |
| Ball weight at tare | 220 kg |
| Maximum ball weight | 400 kg |
Dimensions and capacity
| Body length | 6.4m |
|---|---|
| Overall length | 8.9m |
| Sleeps | 4 |
| Seats | 4 |
Chassis and running gear
| Axle configuration | Tandem |
|---|---|
| Suspension | Cruisemaster XT air bag and independent |
| Brakes | 12 inch Electric Drum |
| Tyre size | 16 inch |
| Stud pattern | 6 stud, 6x139.7 |
Fitout
| Fridge | 224L Compressor |
|---|---|
| Toilet | OGO composting |
| Shower | Internal and external hot/cold |
| Air conditioning | Yes |
This unit
| Stock number | WL1002 |
|---|---|
| Condition | Demo |
| Availability | In stock |
| Registration | 12 Months NSW |
Weights are as supplied by the manufacturer for this build and are confirmed against the compliance plate before handover. If a number here matters to your decision, ask us to check it rather than relying on the listing.

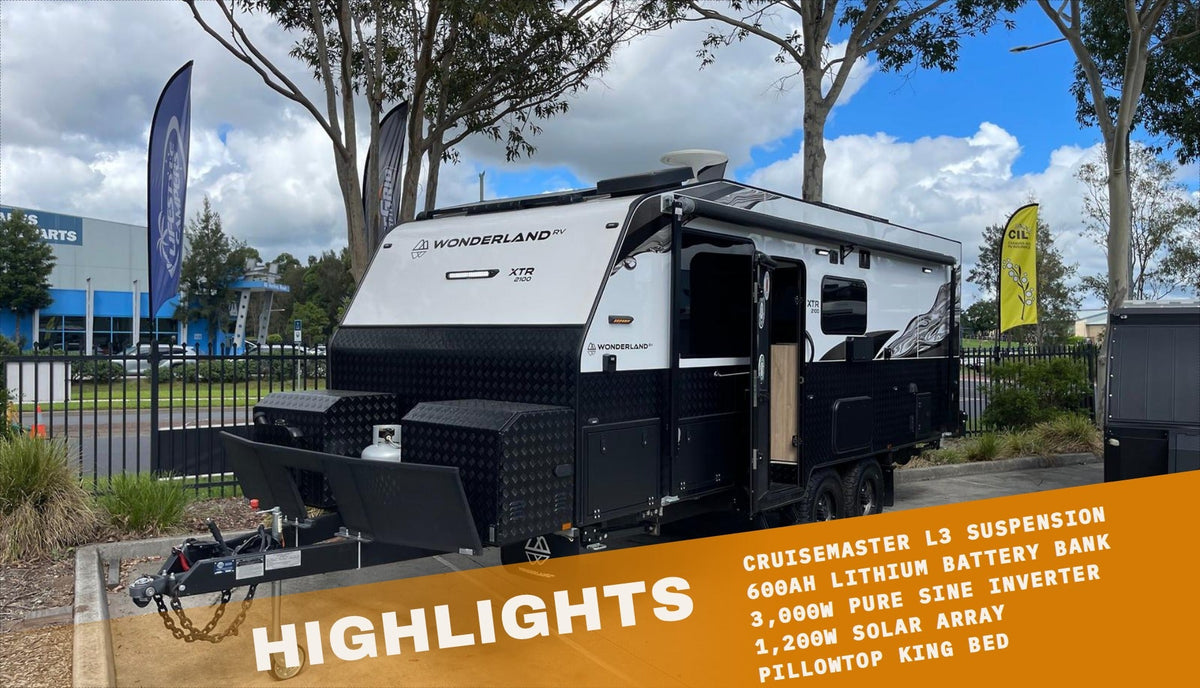

Wonderland RV XTR 21ft Double Bunk King Bed. Ex-demonstrator, available now.
Full manufacturer's warranty. In stock, build date 08/2024. Layout XTR 2100F-K2. Located in Campbelltown.
Upgrades fitted: 4.5T Cruisemaster Level 3 wireless suspension · DO45 recessed hitch coupling by Cruisemaster with 4.5T chains · 800mm tunnel boot slide-out tray · single spare wheel wood box · portable induction cooker with 2 drawers (replaces the standard 4-burner gas cooktop and mini grill) · 4 x Sirocco fans · 224L 12V compressor fridge · hydronic diesel hot water system and heater (gasless) · composting toilet, brand new and unused · pillowtop king 6' x 6'6" with pocket springs for the custom storage king layout · dual pull-out kitchen bin · Wonderland Herringbone Azay Beige flooring · white round ceramic ensuite bowl · white granite kitchen sink bowl · white tapware and accessories · Enerdrive behind-fridge electrical upgrade (ESYS-ICA Simarine, dual MPPT-40, 40A DC, 100A AC, 3000W inverter, 1200W 12V solar, 600Ah B-Tec, integrated gauges) · provision for Starlink · grey water bypass · separate filler and cap per tank · exterior protection pack with Autoritz ceramic coating · Stone Stomper
Chassis: 6" 1950mm A-frame and 12" truss chassis (flat floor) · tandem 4.5T Cruisemaster XT Level 3 wireless air suspension · 12" drum brakes · 4-arm bumper bar · hot dip galvanised or Toughcoat painted chassis · 2 x chassis skid plates and recovery points · 2 x 4kg or 9kg gas bottles · Cruisemaster DO35 hitch and 4.5T chains · AL-KO 8" wide large clamp jockey wheel · drop down stabilisers · double aluminium step · D-Flector stone guard · 2 x rear bar water tank and jerry can holders · 16" 265/75R16 BF Goodrich K02 wheels
Exterior: Dometic 8300 grey awning with black arms · 1 x gas bayonet under the tunnel boot · 12V powered dust reduction system · caravan jack and brace · 1 x black picnic table · 1 x matching spare wheel with holder
Body: 850mm black checker plate protection · white 35mm one-piece composite front, roof and back wall · aluminium cladded sides · black 1750 x 622 entry door with screen door and roller blind · PP honeycomb floor · structural grade jigsaw Wonderwall construction frame · XPS insulation · 2 x large roof hatches · large double-glazed windows with screens and blinds
Storage: Dual front tapered external storage box (500L x 600H x 750D) with 2 slide-out trays and 12V socket · fully lined galvanised sheet 670L front internal tunnel boot
Safety: Breakaway unit and Dexter electronic sway control
12 months NSW personal registration included.
Tell us what you tow with and roughly when you are looking. It means the person who calls you back can actually answer your questions instead of starting from scratch.
Would rather talk? Call (02) 4648 4181 or email sales@offgridoutfitters.com.au
