Payload is what you can actually load: water, gear, food, recovery kit and anything you add. It is the number most people find out about too late, so we publish it.
This one has sold. We have left the page up so you can see the spec, and because someone usually asks whether we can get another like it. Often we can.
See what we have nowAt our Campbelltown showroom. 23 Badgally Road, Campbelltown NSW 2560.
Every van we list shows the same fields in the same order. Where something says "ask us", we have not confirmed that figure for this particular unit and would rather tell you the real number than publish a guess.
Weights
| Tare | 2372 kg |
|---|---|
| GTM | 2700 kg |
| ATM | 2995 kg |
| Payload | 623 kg |
| Ball weight at tare | 170 kg |
| Maximum ball weight | 295 kg |
Dimensions and capacity
| Body length | 5.21m |
|---|---|
| Overall length | Ask us |
| Sleeps | 2 |
| Seats | Ask us |
Chassis and running gear
| Axle configuration | Single |
|---|---|
| Suspension | Cruisemaster ATX air bag and independent |
| Brakes | 12 inch Electric Drum |
| Tyre size | 285/70R16 |
| Stud pattern | 6 stud, 6x139.7 |
Fitout
| Fridge | 224L Fridge Freezer |
|---|---|
| Toilet | Thetford cassette |
| Shower | Internal and external hot/cold |
| Air conditioning | Yes |
This unit
| Stock number | WL1244 |
|---|---|
| Condition | New |
| Availability | Sold |
| Registration | 12 Months NSW |
Weights are as supplied by the manufacturer for this build and are confirmed against the compliance plate before handover. If a number here matters to your decision, ask us to check it rather than relying on the listing.

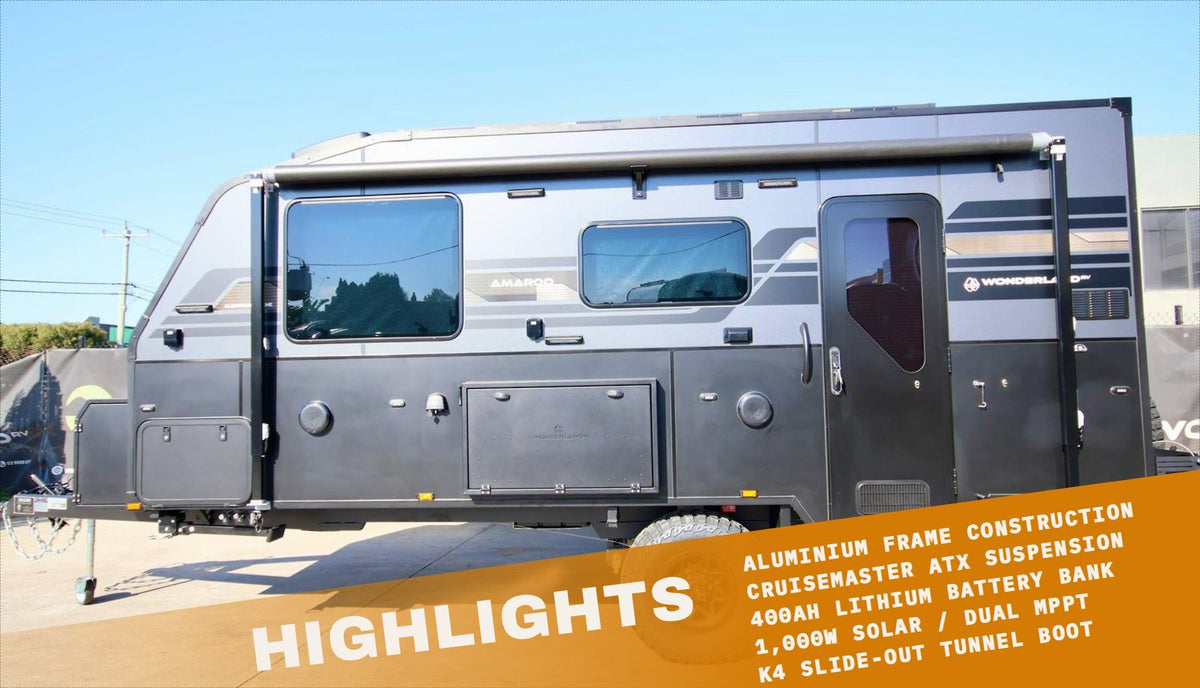

WONDERLAND RV 1709ft SINGLE AXLE — AMAROO SPECIFICATION
Queen 6'3' bed with dual bedside tables · rear door entry · L-shape lounge
YEAR 08/2026 · ATM 2995kg · GTM 2700kg · TARE 2372kg · BALL WEIGHT (Tare) 170kg · BALL WEIGHT (Max) 295kg
LOCATED IN CAMPBELLTOWN NSW
Upgrades fitted: Aluminium frame · 3T Cruisemaster ATX airbag Level 3 manual suspension · Victron behind fridge electrical system (1000W solar, 400Ah lithium, 3000VA inverter, dual 50A MPPT, 50A DC) · soft close drawers · K4 slide in tunnel boot with BBQ provision and sink · 12V dust suppression system
Chassis, frame & suspension: Double 4" chassis with 6" A-frame with 2K PU black coating · PP honeycomb floor · XPS insulation, 35mm full composite front to back roof · 2 x chassis skid plates & recovery points · recessed Cruisemaster DO35 hitch · AL-KO jockey wheel · 4 x drop down stabiliser legs · Dirty-Life Theory 16" wheels with 285/75R16 Cooper AT3 tyres · 4-arm bumper bar with 2 x tapered rear bar jerry can/water tank holders · double aluminium step · TB32-S front storage boxes (bevel top, 1 long side, hinged 4kg gas bottle storage) · 12 pin tow plug
Electrical: Dometic FreshJet 3kW air conditioner · 1 x grey Anderson plug & 1 x portable Anderson plug · Fusion premium audio & speakers · internal LED downlights, amber mood lighting · Starlink provision · dual 240V GPOs, USB & USB-C charging throughout · car rearview reverse camera · breakaway system, smoke/CO/LPG detectors, fire blanket & extinguisher · 2 x Sirocco fans · 24" Smart TV with antenna and internal/external brackets
Internal: Portable induction cooktop with multi-function cooker/fryer/microwave and recessed rangehood · laminate benchtop, perspex splashback, vinyl floors and microfibre leather upholstery · nickel/silver accessories & bathroom pack · white round ensuite sink · stainless steel kitchen sink with brushed stainless 3-way filtered gooseneck tap · queen pillowtop north south mattress · 224L dual-hinge compressor fridge · gas & electric hot water system · 3kg wall mounted washing machine · Thetford separation dual cassette toilet
Exterior: 1 x gas bayonet & 1 x hot/cold water tap · external shower · slide kitchen with Weber provision & sink · 2 x 4kg gas bottles · 2 x 100L fresh water tanks · 100L grey water · grey water bypass · black aluminium access doors · outdoor pantry and table with light, 240V GPO & USB, entertainment pack & airbag controls · large Dometic manual awning · 2 x LED ensuite hatches · 1 x skylight/roof hatch · aluminium corner capping
